Part# 20103808

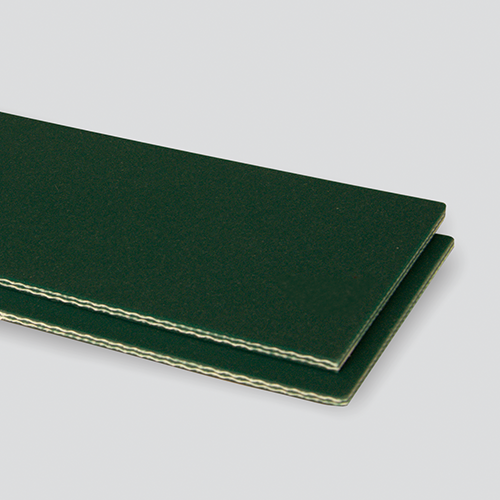

Popular and versatile belt when top and bottom covers are needed. Matte finished covers offer excellent gripping capabilities. With the negative temperature range, this belt can be used in freezer applications. Operates on small pulleys and tracks well.
SPECIFICATIONS
-
EAN / UPC: 725559944376
-
Spec#: 3808
-
Ply: 2
-
Working Tension: 100
-
Color: Green
-
Compound: PVG
-
Carcass: Spun Polyester
-
Top Surface: Matte
-
Bottom Surface: Matte
-
Thickness / Overall Gauge: 0.115"
-
Weight (PIW): 0.069
-
Elongation @ 100%: 1-2%
-
Minimum Pulley: 2"
-
Temperature Range: -20°F to 180°F
-
Oil Resistant: Yes
-
Accepted: FDA
-
Clipper®: UX1
-
Alligator®: 7
-
Staple: RS125
-
Solid Plate: Not Recommended
-
Flexco® Bolt On: Not Recommended
-
Flexco® Rivet: Not Recommended
-
Plastic Spiral: ASL90
-
Plastic Rivet: APF150 W Recess
-
Endless Splice: Finger, Skive
