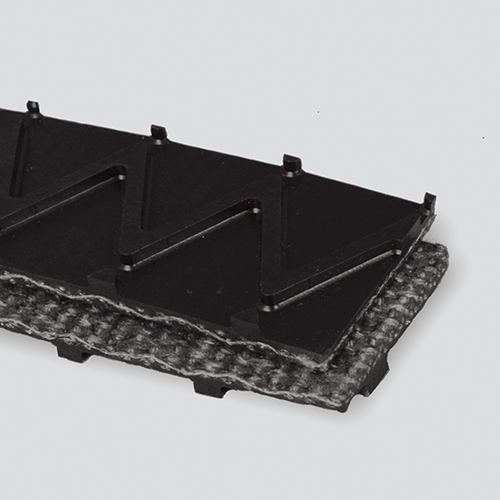

Interwoven 120# Polyester Black PVG Z-top x Brushed

Interwoven 120# Polyester Black PVG Z-top x Brushed

Part# 20104329

Very sturdy and aggressive, impression top incline belt used in agricultural applications as well as chemical, fertilizer, and industrial applications. The impression is deep enough to increase load capacity up inclines, but designed in shapes that allow the belt to run smoothly on the conveyor return rollers.



SPECIFICATIONS

  • EAN / UPC: 725559945403
  • Spec#: 4329
  • Ply: 1
  • Working Tension: 120
  • Color: Black
  • Compound: PVC
  • Carcass: Interwoven Polyester
  • Top Surface: Impression
  • Bottom Surface: Brushed
  • Thickness / Overall Gauge: 0.245"
  • Weight (PIW): 0.090
  • Elongation @ 100%: 1-2%
  • Minimum Pulley: 3"
  • Temperature Range: -20°F to 180°F
  • Oil Resistant: Yes
  • Clipper®: UX1
  • Alligator®: 15
  • Staple: RS125
  • Solid Plate: Not Recommended
  • Flexco® Bolt On: Not Recommended
  • Flexco® Rivet: Not Recommended
  • Plastic Spiral: Not Recommended
  • Plastic Rivet: APF150 B
  • Endless Splice: Finger, Skive
