Part# 20104380

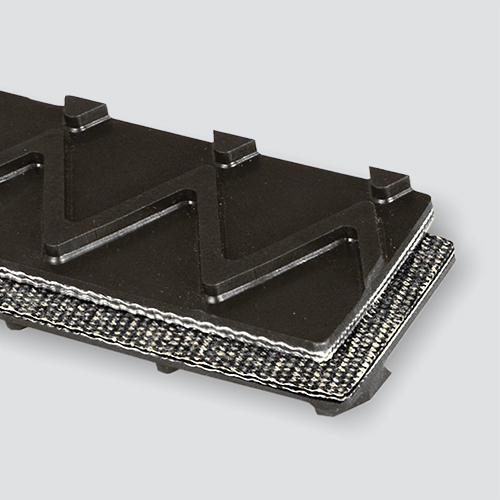

Very sturdy and aggressive, this impression top incline belt is used in agricultural, chemical, fertilizer, and industrial applications. The impression is deep enough to increase load capacity up inclines, while also designed to allow the belt to run smoothly on conveyor return rollers.
SPECIFICATIONS
-
UPC: 725559950278
-
Spec#: 4380
-
Ply: 2
-
Working Tension: 110
-
Color: Black
-
Compound: PVC
-
Carcass: Spun Polyester
-
Top Surface: Z-Top
-
Bottom Surface: Brushed
-
Thickness / Overall Gauge: 0.24"
-
Weight (PIW): 0.083"
-
Elongation @ 100%: 1-2%
-
Minimum Pulley: 2.5"
-
Temperature Range: -20°F to 180°F
-
Oil Resistant: Yes
-
Clipper®: UX1
-
Alligator ®: 7
-
Staple: RS125
-
Solid Plate: Not Recommended
-
Flexco® Bolt On: Not Recommended
-
Flexco® Rivet: Not Recommended
-
Plastic Spiral: Not Recommended
-
Plastic Rivet: APF150 B
-
Endless Splice: Finger, Skive
