Part# 20021635

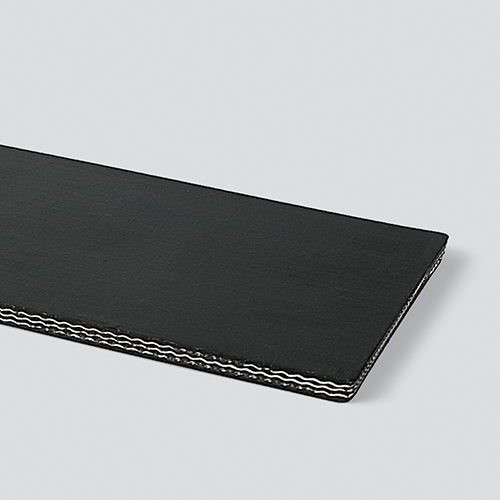

Special compounds in this belt make it an excellent choice for handling grain and other applications requiring resistance to mineral, animal, or vegetable fats. It is also static conductive for use on grain conveyors and in grain elevators where static charges must be held to minimums. Belt is flame retardant.
SPECIFICATIONS
-
UPC: 725559131653
-
Spec#: 27A
-
Ply: 3
-
Working Tension: 600
-
Color: Black
-
Compound: Nitrile
-
Carcass: Polyester/Nylon
-
Top Surface: Smooth
-
Bottom Surface: Smooth
-
Thickness / Overall Gauge: 0.375"
-
Weight (PIW): 0.195
-
Elongation @ 100%: 1-2%
-
Minimum Pulley: 20" (24" elevator)
-
Temperature Range: -25°F to 250°F
-
Oil Resistant: Yes
-
Durometer: 60 +/- 5
-
Clipper®: Not Recommended
-
Alligator®: Not Recommended
-
Staple: Not Recommended
-
Solid Plate: 140
-
Flexco® Bolt On: 550
-
Flexco® Rivet: R5
-
Endless Splice: Bias Step
