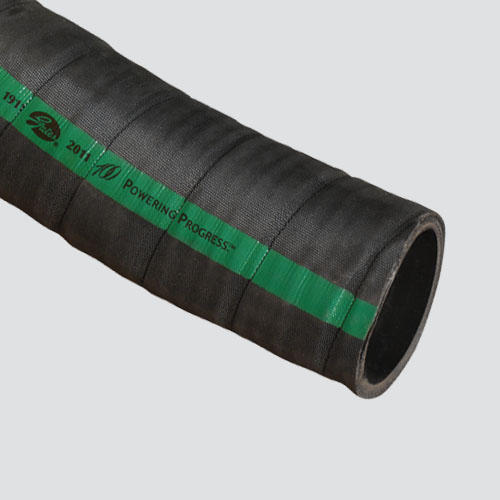

1-1/2" Hydraulic Return Line Hose — Bulk/Uncoupled

1-1/2" Hydraulic Return Line Hose — Bulk/Uncoupled

Part# 38001541

Hydraulic return line hose is designed for petroleum and water-based hydraulic fluids in suction lines, and low pressure return lines. It meets MSHA flame resistance.



SPECIFICATIONS

  • EAN / UPC: 725559115547
  • Inside Diameter (in): 1-1/2
  • Inside Diameter (mm): 38.1
  • Outside Diameter (in): 2.01
  • Outside Diameter (mm): 51.05
  • Maximum PSI:  162
  • Minimum Bend Radius (in): 5
  • Temperature Range: -40°F to 275°F
  • Cover Material: Neoprene
  • Cover Color: Black
  • Tube Material: Nitrile
  • Tube Color: Black
  • Reinforcement: Double Spiral Textile with Helical Spiral Wire
  • Negative Pressure / Vacuum Rating (in/HG): 25
  • Weight (lbs): 0.91 / Foot
  • Style: Coiled
