2-Ply 220# 3/16 x 1/16 Durochev with 5/8 high x 16 Overall Width Molded Chevrons

2-Ply 220# 3/16 x 1/16 Durochev with 5/8 high x 16 Overall Width Molded Chevrons

Part# 20029620

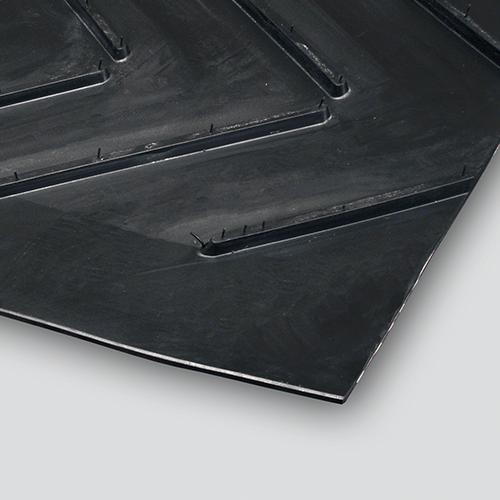

Popular 5/8" high molded chevron cleats on 10" centers. Designed for rugged incline applications and popular for conveying rock, sand, and gravel. Cleats recessed from belt edges allow for placement of skirting.



SPECIFICATIONS

  • EAN / UPC: 725559975943
  • Spec#: 281
  • Ply: 2
  • Working Tension: 220
  • Color: Black
  • Compound: SBR
  • Carcass: Polyester/Nylon
  • Top Surface: Molded Chevron
  • Bottom Surface: Smooth
  • Profile: 5/8" x 16" Overall Width Chevron
  • Thickness / Overall Gauge: 1"
  • Weight (PIW): 0.5
  • Elongation @ 100%: 1-2%
  • Minimum Pulley: 14"
  • Temperature Range: 0°F to 200°F
  • Oil Resistant: No
  • Durometer: 60 +/- 5
  • Clipper®: Not Recommended
  • Alligator®: Not Recommended
  • Staple: Not Recommended
  • Solid Plate: 140
  • Flexco® Bolt On: 550
  • Flexco® Rivet: R5
  • Endless Splice: Bias Step
