Part# 20104145

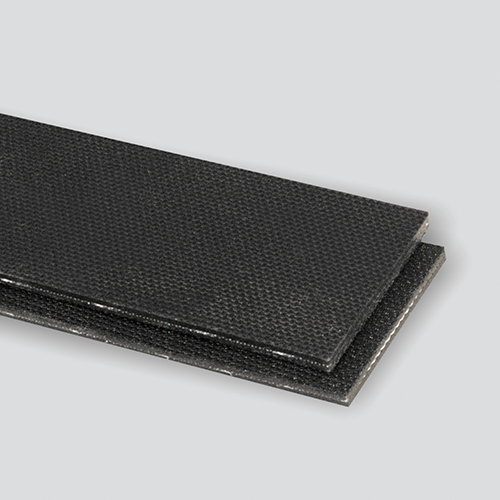

An excellent package handling belt with two plies of cross-rigid monofilament and an aggressive dimpled top impression. Used in a wide assortment of applications where a more aggressive top cover is required including slight inclines and declines.
SPECIFICATIONS
-
UPC: 725559945014
-
Spec#: 4145
-
Ply: 2
-
Working Tension: 60
-
Color: Black
-
Compound: PVC
-
Carcass: Multifilament x Monofilament
-
Top Surface: Embossed
-
Bottom Surface: Bare
-
Thickness / Overall Gauge: 0.115"
-
Weight (PIW): 0.625
-
Elongation @ 100%: 1-2%
-
Minimum Pulley: 1"
-
Temperature Range: 20°F to 180°F
-
Oil Resistant: Yes
-
Clipper®: UX1
-
Alligator®: 7
-
Staple: RS62
-
Solid Plate: Not Recommended
-
Flexco® Bolt On: Not Recommended
-
Flexco® Rivet: Not Recommended
-
Plastic Spiral: ASL90
-
Plastic Rivet: APF150 B Recess
-
Endless Splice: Finger, Skive
