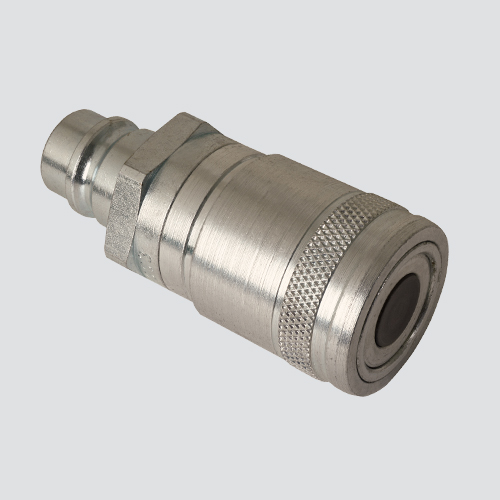

1/2" Flat Face Male Tip x 1/2" Flat Face Female Coupler Quick Disconnect Skid Steer Coupler (FAE49-56-4)

1/2" Flat Face Male Tip x 1/2" Flat Face Female Coupler Quick Disconnect Skid Steer Coupler (FAE49-56-4)

Part# 39040720

Flat (flush) face coupler to ISO 5675 male tip adapter provides an effective method of interchanging agricultural and industrial machines and equipment. ISO 16028 to ISO 5675. Allows conenction of FAE491-4 or FAE491-6 male flush face tip to a 1/2" body S56, S20, or S40 series ISO female half. Replaces Pioneer #EAS-500.



SPECIFICATIONS

  • EAN / UPC: 725559682179
  • Technical Description: FAE49-56-4
  • End 1 Size: 1/2"
  • End 1 Type: Flat Face Male Tip
  • End 2 Size: 1/2"
  • End 2 Type: Flat Face Female Coupler
  • Valve Style: Poppet /Flat Face Valve
  • Maximum PSI (lbs): 3000
  • Maximum Temperature: 250°F
  • Gallons Per Minute: 12
  • Weight (lbs): 0.9 / Each
  • Type: Skid Steer Coupler
  • Style: Retail Packaged
  • Warnings: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after use.
