2-Ply 160# Polyester Gray EPDM Teflon® Cover x Bare

2-Ply 160# Polyester Gray EPDM Teflon® Cover x Bare

Part# 20104174

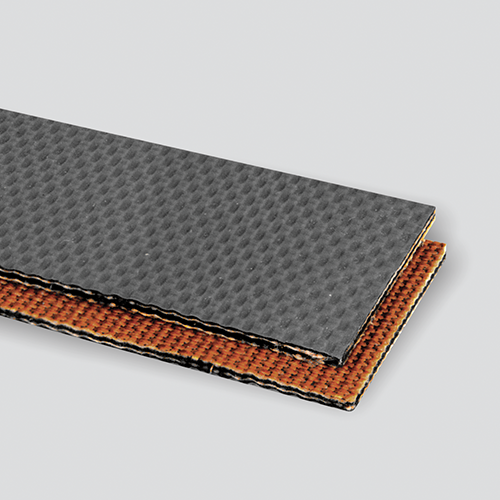

This unique belt has two plies of polyester with EPDM skims for high temperatures. The Teflon® cover offers a highly durable dimpled cover with excellent release. Ideal for conveying hot, sticky products such as rubber, tapes, and plastic extrusions. (Belt not FDA approved.)




SPECIFICATIONS

  • UPC: 725559945137
  • Spec#: 4174
  • Ply: 2
  • Working Tension: 160
  • Color: Gray
  • Compound: Teflon®
  • Carcass: Polyester
  • Top Surface: Teflon® Cover
  • Bottom Surface: Bare
  • Thickness / Overall Gauge: 0.112"
  • Weight (PIW): 0.040
  • Elongation @ 100%: 1-2%
  • Minimum Pulley: 2"
  • Temperature Range: -65°F to 300°F
  • Oil Resistant: No
  • Clipper®: UX1
  • Alligator®: 7
  • Staple: RS125
  • Solid Plate: Not Recommended
  • Flexco® Bolt On: Not Recommended
  • Flexco® Rivet: Not Recommended
  • Plastic Spiral: ASL90
  • Plastic Rivet: APF150 W Recess
  • Endless Splice: Skive, Bias Step
