Part# 20029601

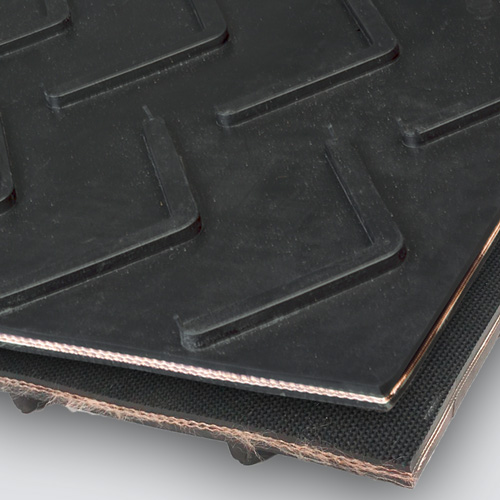

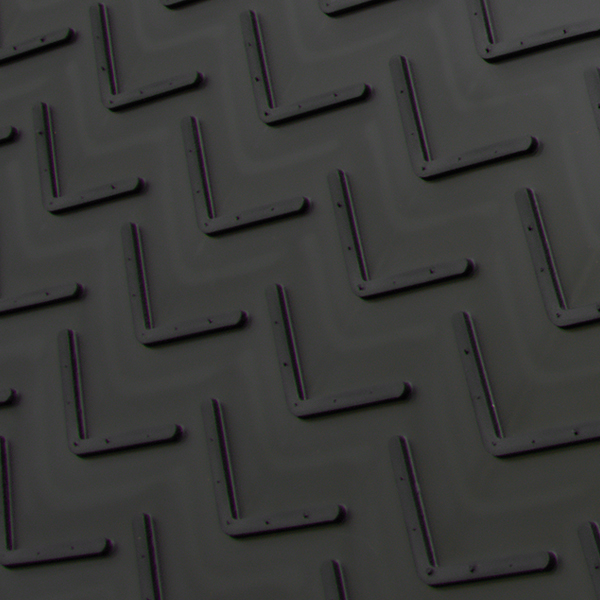

1/4" high x 3/8" wide x 6" overall width molded chevron cleats running the full width of the belt. Popular for incline applications for road construction, recycling, wood chips, and grain handling.
SPECIFICATIONS
-
UPC: 725559026416
-
Spec#: 58
-
Ply: 2
-
Working Tension: 220
-
Color: Black
-
Compound: NBR Blend
-
Carcass: Polyester/Nylon
-
Top Surface: Molded Chevron
-
Bottom Surface: Smooth
-
Profile: 1/4" x 3/8"
-
Thickness / Overall Gauge: 0.3125"
-
Weight (PIW): 0.21
-
Elongation @ 100%: 1-2%
-
Minimum Pulley: 12"
-
Temperature Range: -25°F to 250°F
-
Oil Resistant: Yes
-
Durometer: 60 +/- 5
-
Clipper®: Not Recommended
-
Alligator®: Not Recommended
-
Staple: Not Recommended
-
Solid Plate: 190
-
Flexco® Bolt On: 375X
-
Flexco® Rivet: R5
-
Endless Splice: Bias Step
