3-Ply 330# 1/8 x 1/16 Durocleat™ Moderate Oil Resistance

3-Ply 330# 1/8 x 1/16 Durocleat™ Moderate Oil Resistance

Part# 20029615

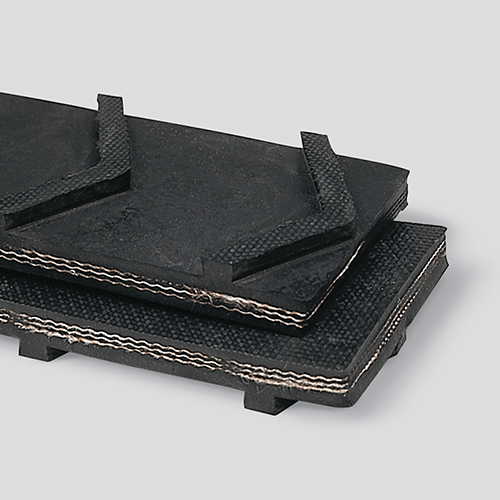

1/4" high x 3/8" wide x 6" overall width molded chevron cleats running the full width of the belt. Popular for incline applications for road construction, recycling, wood chips, and grain handling.



SPECIFICATIONS

  • EAN / UPC: 725559190339
  • Spec#: 59B
  • Ply: 3
  • Working Tension: 330
  • Color: Black
  • Compound: NBR Blend
  • Carcass: Polyester/Nylon
  • Top Surface: Molded Chevron
  • Bottom Surface: Smooth
  • Profile: 1/4" x 3/8"
  • Thickness / Overall Gauge: 0.375"
  • Weight (PIW): 0.25
  • Elongation @ 100%: 1-2%
  • Minimum Pulley: 18"
  • Temperature Range: 0°F to 250°F
  • Oil Resistant: Yes
  • Durometer: 60 +/- 5
  • Clipper®: Not Recommended
  • Alligator®: Not Recommended
  • Staple: Not Recommended
  • Solid Plate: 190
  • Flexco® Bolt On: 550
  • Flexco® Rivet: R5-1/2
  • Endless Splice: Bias Step
