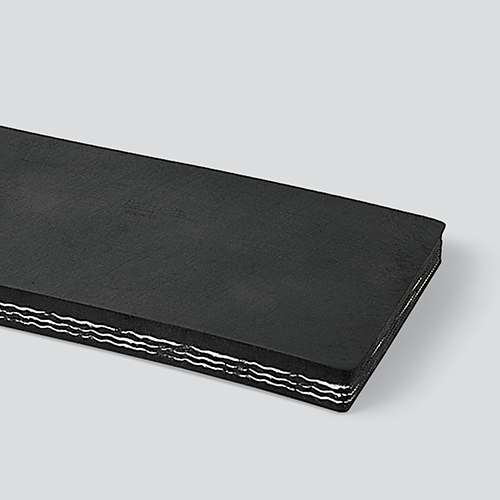

3-Ply 330# 3/16 x 1/16 350° Super Oil Resistant Hot Asphalt

3-Ply 330# 3/16 x 1/16 350° Super Oil Resistant Hot Asphalt

Part# 20021093

Excellent heat and oil resistant belt with higher tension strengths. Used in elevated oily temperature applications such as hot asphalt, oily grains, machine oils, and oil treated coal. Special blended cover compounds provide maximum resistance to the deteriorating effects of oils and higher temperatures.



SPECIFICATIONS

  • EAN / UPC: 725559025013
  • Spec#: 42A
  • Ply: 3
  • Working Tension: 330
  • Color: Black
  • Compound: Nitrile
  • Carcass: Polyester/Nylon
  • Top Surface: Smooth
  • Bottom Surface: Smooth
  • Thickness / Overall Gauge: 0.4375"
  • Weight (PIW): 0.215
  • Elongation @ 100%: 1-2%
  • Minimum Pulley: 18"
  • Temperature Range: 0°F to 350°F
  • Oil Resistant: Yes
  • Durometer: 60 +/- 5
  • Clipper®: Not Recommended
  • Alligator®: Not Recommended
  • Staple: Not Recommended
  • Solid Plate: 190
  • Flexco® Bolt On: 550
  • Flexco® Rivet: R5
  • Endless Splice: Bias Step
