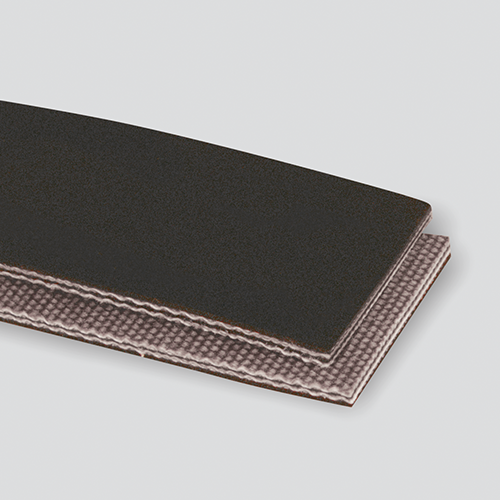

2-Ply 150# Polyester Black PVG Matte Cover x Brushed

2-Ply 150# Polyester Black PVG Matte Cover x Brushed

Part# 20104144

Medium-duty utility PVC belt designed for a wide variety of industrial and agricultural applications. High resin PVC offers a premium cover compound that is easily fabricated using thermoweld and high frequency equipment. This compound also makes this belt an excellent alternative to similar rubber products.



SPECIFICATIONS

  • EAN / UPC: 725559945007
  • Spec#: 4144
  • Ply: 2
  • Working Tension: 150
  • Color: Black
  • Compound: PVG
  • Carcass: Spun Polyester
  • Top Surface: Cover
  • Bottom Surface: Friction
  • Thickness / Overall Gauge: 0.172"
  • Weight (PIW): 0.1
  • Elongation @ 100%: 1-2%
  • Minimum Pulley: 4"
  • Temperature Range: -20°F to 180°F
  • Oil Resistant: Yes
  • Clipper®: U2
  • Alligator®: 15
  • Staple: RS187
  • Solid Plate: Not Recommended
  • Flexco® Bolt On: Not Recommended
  • Flexco® Rivet: Not Recommended
  • Plastic Spiral: ASL90
  • Plastic Rivet: APF150 B Recess
  • Endless Splice: Finger, Skive
