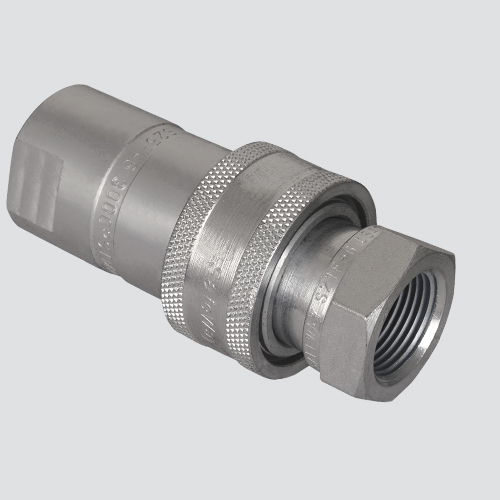

1/2" Female Pipe Thread x 1/2" Body One-Way Sleeve Hydraulic Quick Disconnect (S20-4)

1/2" Female Pipe Thread x 1/2" Body One-Way Sleeve Hydraulic Quick Disconnect (S20-4)

Part# 39040920

Sets have an ISO 5675 body and include a coupler/plug combination primarily used on agricultural and construction equipment. If the coupler is permanently mounted, the one-way sleeve design allows implement break-away without hose damage. Critical parts are hardened for long service life. Couplers interchangeable with Parker/Pioneer 4200 Series.



SPECIFICATIONS

  • EAN / UPC: 725559672347
  • Technical Description: S20-4
  • Thread: 1/2" Female Pipe Thread
  • Valve Style: Ball Valve
  • Size (in): 1/2" Body
  • Maximum PSI (lbs): 3000
  • Maximum Temperature: 250°F
  • Gallons Per Minute: 12
  • Weight (lbs): 0.8 / Each
  • Type: Quick Disconnect
  • Style: Retail Packaged
  • Warnings: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after use.
