Part# 20104128

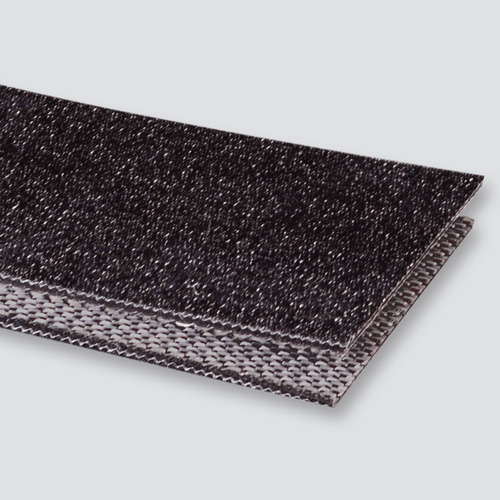

Accumulation and diversion. This product is made with a tough, abrasion resistant, and rigid monofilament carcasses. Features a low noise, pulley side fabric bottom. The construction makes these products lay flat, while thermoplastic skims allow for superior, more flexible splices.
SPECIFICATIONS
-
UPC: 725559321573
-
EAN / UPC: 725559321573
-
Spec#: 4128
-
Spec#: 4128
-
Ply: 2
-
Ply: 2
-
Working Tension: 100
-
Working Tension: 100
-
Color: Black
-
Color: Black
-
Compound: PVC
-
Compound: PVC
-
Carcass: Monofilament
-
Carcass: Monofilament
-
Top Surface: Bare
-
Top Surface: Bare
-
Bottom Surface: Bare Whisper Weave
-
Bottom Surface: Bare Whisper Weave
-
Thickness / Overall Gauge: 0.075"
-
Thickness / Overall Gauge: 0.075"
-
Weight (PIW): 0.034
-
Weight (PIW): 0.034
-
Elongation @ 100%: 1-2%
-
Elongation @ 100%: 1-2%
-
Minimum Pulley: 1.4"
-
Minimum Pulley: 1.4"
-
Temperature Range: 20°F to 180°F
-
Temperature Range: 20°F to 180°F
-
MSHA Approved / Fire Resistant: Yes
-
MSHA Approved / Fire Resistant: Yes
-
Oil Resistant: No
-
Oil Resistant: No
-
Clipper®: UX1SP
-
Clipper®: UX1SP
-
Alligator ®: 7
-
Alligator ®: 7
-
Staple: RS62
-
Staple: RS62
-
Solid Plate: Not Recommended
-
Solid Plate: Not Recommended
-
Flexco® Bolt On: Not Recommended
-
Flexco® Bolt On: Not Recommended
-
Flexco® Rivet: Not Recommended
-
Flexco® Rivet: Not Recommended
-
Endless Splice: Finger Over Finger, Skive
-
Endless Splice: Finger Over Finger, Skive
