Part# 20104106

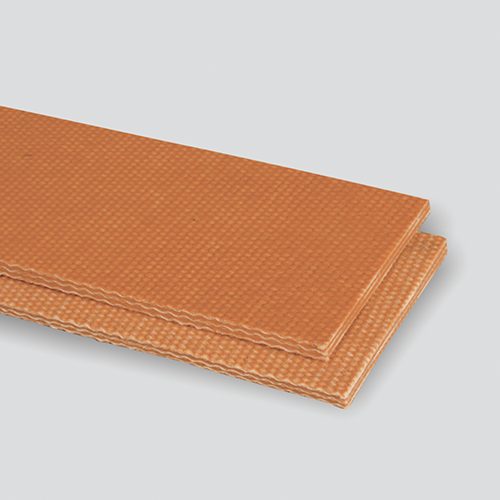

PVC built in the traditional design of rubber transmission belting. Constructed of spun polyester, this product provides great tracking, strength, and excellent lace holding ability. Thermoplastic cover allows for the full range of fabrications including smooth endless finger splicing. Light oil resistance and low coefficient of friction makes this a fast and easy replacement for the more expensive rubber transmission belts.
SPECIFICATIONS
-
UPC: 725559944758
-
Spec#: 4106
-
Ply: 3
-
Working Tension: 150
-
Color: Tan
-
Compound: PVC
-
Carcass: Spun Polyester
-
Top Surface: Friction
-
Bottom Surface: Brushed
-
Thickness / Overall Gauge: 0.125"
-
Weight (PIW): 0.070
-
Elongation @ 100%: 1-2%
-
Minimum Pulley: 2"
-
Temperature Range: 20°F to 180°F
-
Oil Resistant: No
-
Clipper®: UX1
-
Alligator®: 7
-
Staple: RS125
-
Solid Plate: Not Recommended
-
Flexco® Bolt On: Not Recommended
-
Flexco® Rivet: Not Recommended
-
Plastic Spiral: ASL90
-
Plastic Rivet: APF150 W
-
Endless Splice: Finger, Skive
