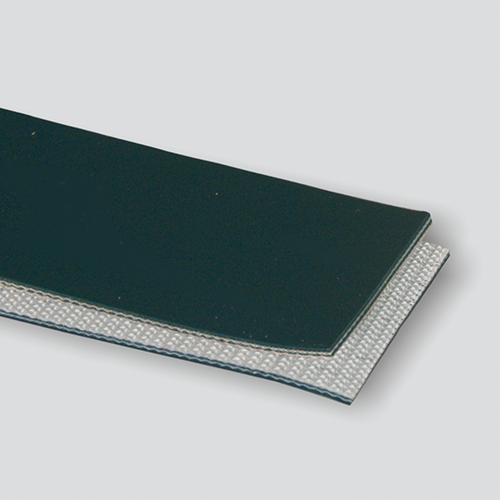

2-Ply 100# Polyester Monofilament Green PVC Cover x Bare Anti-static

2-Ply 100# Polyester Monofilament Green PVC Cover x Bare Anti-static

Part# 20104138

A hard, premium PVC cover with a matte finish that reduces glare and minimizes belt marking.



SPECIFICATIONS

  • EAN / UPC: 725559950100
  • Spec#: 4138
  • Ply: 2
  • Working Tension: 100
  • Color: Green
  • Compound: PVC
  • Carcass: Monofilament
  • Top Surface: Smooth
  • Bottom Surface: Bare
  • Thickness / Overall Gauge: 0.078"
  • Weight (PIW): 0.040
  • Elongation @ 100%: 1-2%
  • Minimum Pulley: 1.5"
  • Temperature Range: 0°F to 180°F
  • Oil Resistant: No
  • Clipper®: UX1SP
  • Alligator®: 7
  • Staple: RS62
  • Solid Plate: Not Recommended
  • Flexco® Bolt On: Not Recommended
  • Flexco® Rivet: Not Recommended
  • Plastic Spiral: ASL90
  • Plastic Rivet: APF100 W
  • Endless Splice: Finger, Skive
