2-Ply 100# Polyester Monofilament Green PVC Roughtop x Bare

2-Ply 100# Polyester Monofilament Green PVC Roughtop x Bare

Part# 20104346

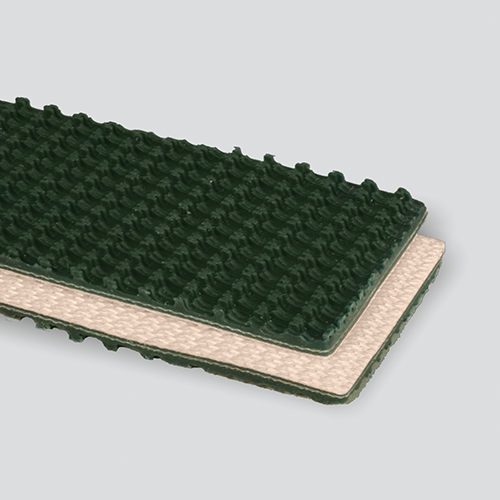

Soft, high grip PVC top cover with plied polyester monofilament carcass to wrap small pulley diameters and low stretch features.



SPECIFICATIONS

  • EAN / UPC: 725559951732
  • Spec#: 4346
  • Ply: 2
  • Working Tension: 100
  • Color: Green
  • Compound: PVC
  • Carcass: Monofilament
  • Top Surface: Impression
  • Bottom Surface: Bare
  • Thickness / Overall Gauge: 0.219"
  • Weight (PIW): 0.080
  • Elongation @ 100%: 1-2%
  • Minimum Pulley: 2.4"
  • Temperature Range: 20°F to 180°F
  • Oil Resistant: No
  • Clipper®: U2
  • Alligator®: 7
  • Staple: RS125
  • Solid Plate: Not Recommended
  • Flexco® Bolt On: Not Recommended
  • Flexco® Rivet: Not Recommended
  • Plastic Spiral: ASL90
  • Plastic Rivet: APF100 W
  • Endless Splice: Finger, Skive
