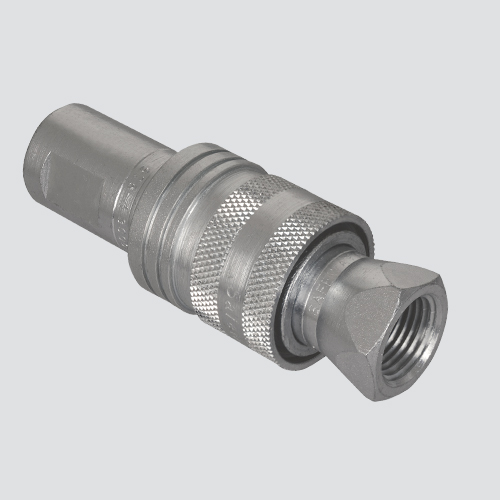

1/2" Female Pipe Thread x 1/2" Body Two-Way Sleeve Hydraulic Quick Disconnect (S70-4)

1/2" Female Pipe Thread x 1/2" Body Two-Way Sleeve Hydraulic Quick Disconnect (S70-4)

Part# 39041400

Sets have an ISO 5675 body, and include a S75 coupler and S71 plug combination. The unique internal valving automatically opens the hydraulic circuit after connection, if the system is in operating mode. When mounted to a bulkhead, the two-way double acting sleeve allows one-hand operation under full pressure, and implement break-away. Critical parts are hardened for long service life. Interchangeable with Parker/Pioneer 8200 Series.



SPECIFICATIONS

  • EAN / UPC: 725559672484
  • Technical Description: S70-4
  • Thread: 1/2" Female Pipe Thread
  • Valve Style: Ball Valve
  • Size (in): 1/2" Body
  • Maximum PSI (lbs): 3000
  • Maximum Temperature: 250°F
  • Gallons Per Minute: 12
  • Weight (lbs): 0.95 / Each
  • Type: Quick Disconnect
  • Style: Retail Packaged
  • Warnings: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after use.
