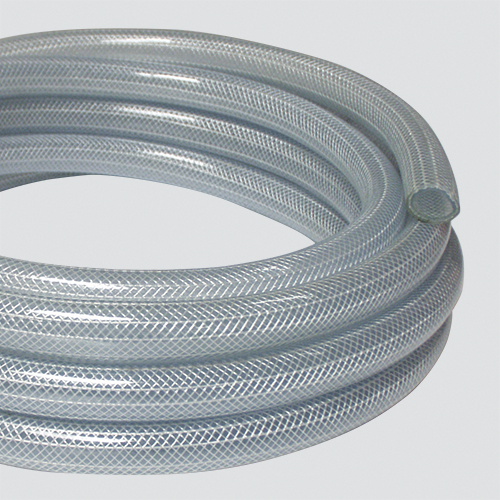

1" x 100' Reinforced Clear Vinyl Tubing — Coiled1" x 100' Reinforced Clear Vinyl Tubing — Coiled

1" x 100' Reinforced Clear Vinyl Tubing — Coiled

Part# 15011005

Reinforced clear polyvinyl chloride tubing designed for applications that require full view of product flow and higher working pressures than non-reinforced tubing. Tubing is FDA approved. Rated good to excellent for acids, fair to excellent for alkalis, and excellent for most solvents.



SPECIFICATIONS

  • EAN / UPC: 725559080494
  • Inside Diameter (in): 1
  • Inside Diameter (mm): 25.4
  • Outside Diameter (in): 1.31
  • Outside Diameter (mm): 33.32
  • Maximum PSI: 125
  • Minimum Bend Radius (in): 9
  • Temperature Range: -20°F to 150°F
  • Cover Material: Vinyl
  • Cover Color: Clear
  • Tube Material: Vinyl
  • Tube Color: Clear
  • Reinforcement: Braided Synthetic Cord
  • Weight (lbs): 31 / Each
  • Style: Coiled with Retail Labeling
  • Warnings: Do not use for ketones, esters, and some aromatic hydrocarbons. Manufacturer testing for PSI and minimum bend radius completed at 68°F. Increase or decrease in temperature may affect hose performance.
