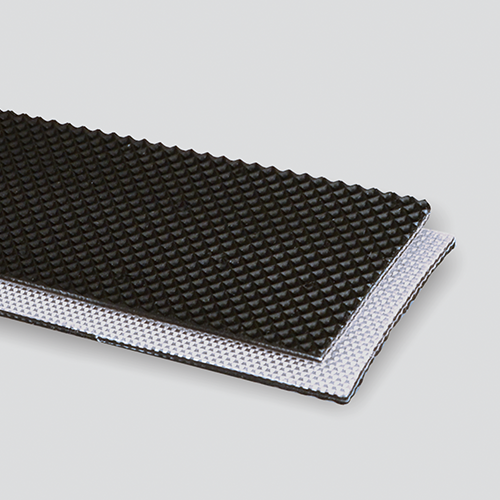

2-Ply 100# Polyester Monofilament Black PVC Quad Top x Bare

2-Ply 100# Polyester Monofilament Black PVC Quad Top x Bare

Part# 20104393

Traditional quad (inverted diamond) pattern makes this monofilament belt a great choice as an alternative to standard roughtops when a less aggressive cover is required. More easily cleaned, this belt is popular in a wide range of industrial applications. Thermoplastic elastomer allows for easy splicing and fabrication including cleats and V-guides.



SPECIFICATIONS

  • EAN / UPC: 725559945557
  • Spec#: 4393
  • Ply: 2
  • Working Tension: 100
  • Color: Black
  • Compound: PVC
  • Carcass: Monofilament
  • Top Surface: Impression
  • Bottom Surface: Bare
  • Thickness / Overall Gauge: 0.102"
  • Weight (PIW): 0.051
  • Elongation @ 100%: 1-2%
  • Minimum Pulley: 2"
  • Temperature Range: 20°F to 180°F
  • Oil Resistant: No
  • Clipper®: UX1SP
  • Alligator®: 7
  • Staple: RS62
  • Solid Plate: Not Recommended
  • Flexco® Bolt On: Not Recommended
  • Flexco® Rivet: Not Recommended
  • Plastic Spiral: ASL90
  • Plastic Rivet: APF150 B
  • Endless Splice: Finger, Skive
