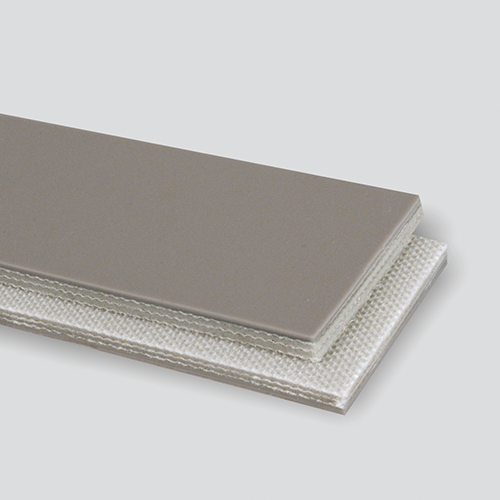

3-Ply 135# Polyester Monofilament Gray PVC Smooth Sticky Top x Bare

3-Ply 135# Polyester Monofilament Gray PVC Smooth Sticky Top x Bare

Part# 20104163

Specialty high friction tops used in difficult inclines, declines, or as brake or spacer belts. Can handle paperboard containers and some totes on inclines up to 45˚. Primarily effective in clean, dry environments. This belt is made with premium soft durometer PVC covers.



SPECIFICATIONS

  • EAN / UPC: 725559945113
  • Spec#: 4163
  • Ply: 3
  • Working Tension: 135
  • Color: Gray
  • Compound: PVC
  • Carcass: Monofilament
  • Top Surface: Impression
  • Bottom Surface: Bare
  • Thickness / Overall Gauge: 0.185"
  • Weight (PIW): 0.098
  • Elongation @ 100%: 1-2%
  • Minimum Pulley: 3"
  • Temperature Range: 20°F to 180°F
  • Oil Resistant: No
  • Clipper®: U2
  • Alligator®: 15
  • Staple: RS187
  • Solid Plate: Not Recommended
  • Flexco® Bolt On: Not Recommended
  • Flexco® Rivet: Not Recommended
  • Plastic Spiral: ASL90
  • Plastic Rivet: APF150 W Recess
  • Endless Splice: Finger Over Finger, Skive
