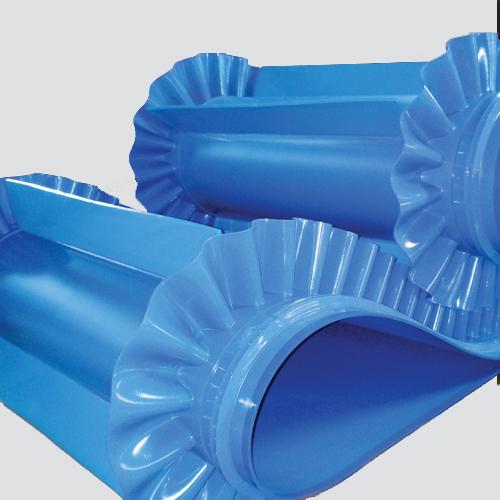

Cleats are used to convey materials up an incline and prevent product rollback, as well as to create separation between the products or materials that are being conveyed. Other names for cleats include flights, lugs, and profiles. We offer a wide variety of cleat styles and patterns to fit every application need.
- T-Cleat for most incline needs
- Scoops cleats for steeper angles
- Thin line cleats for smaller pulley diameters and lower tonnages
- Available in many size, styles, and colors

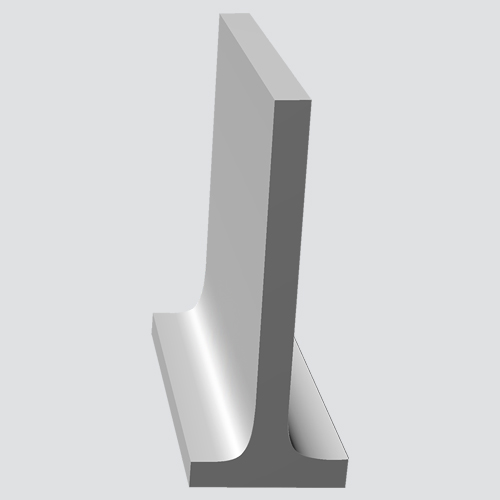

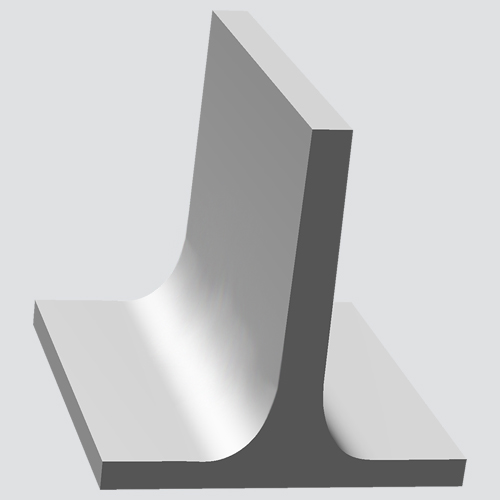

T-Cleat

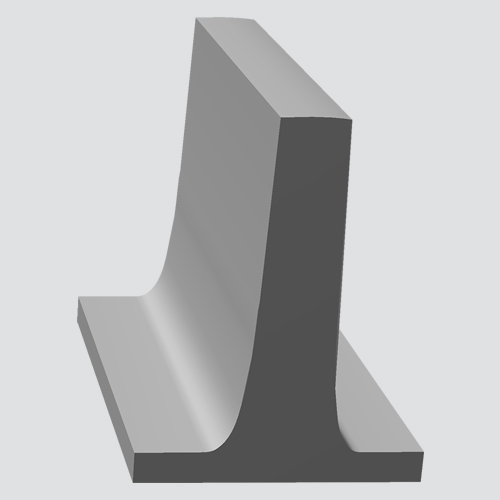

Heavy-Duty T-Cleat

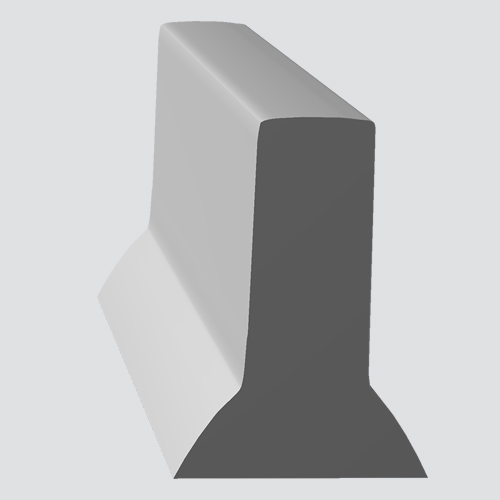

Super Heavy-Duty T-Cleat

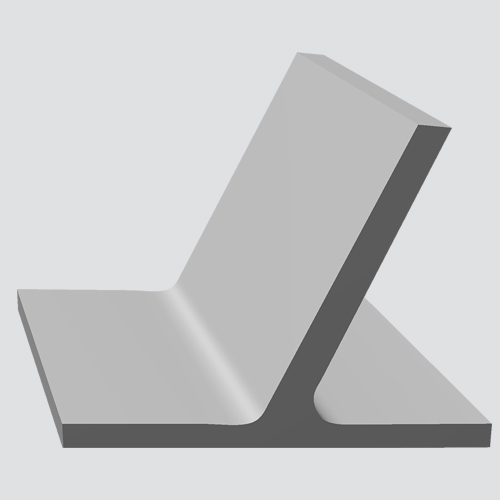

C-Cleat (Scoop)
Thin Line Cleat

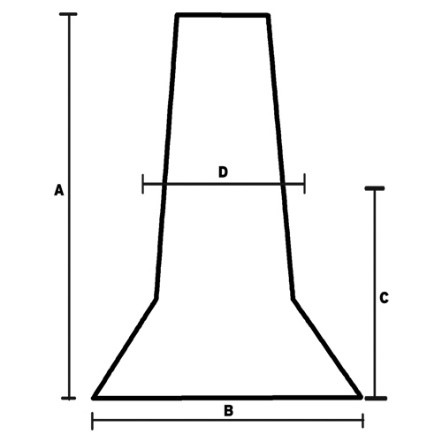

| GENERAL CLEAT SPECS |
|---|
| TYPE |
A |
B |
C |
D |
| Standard |
1" |
1-3/8" |
3/16" |
3/8" |
| |
1-1/2" |
1-3/8" |
3/16" |
3/8" |
| |
2" |
1-1/2" |
3/16" |
3/8" |
| |
2-1/2" |
1-1/2" |
3/16" |
3/8" |
| |
3" |
1-5/8" |
3/16" |
3/8" |
| |
4" |
1-3/4" |
1/4" |
9/16" |
| |
3" Scoop |
1-3/4" |
3/16" |
5/16" |
| HD |
1-1/2" |
1-1/2" |
1/8" |
7/16" |
| Super HD |
1-1/2" |
1-1/2" |
3/8" |
9/16" |
| |
2" |
1-1/2" |
3/8" |
9/16" |
| |
3" |
1-1/2" |
3/8" |
9/16" |
| |
4" |
1-3/4" |
1/4" |
9/16" |
| Thin Line |
30 mm |
8 mm |
|
3 mm |
| |
40 mm |
10 mm |
|
3.5 mm |
| |
50 mm |
10 mm |
|
3.5 mm |
| |
60 mm |
10 mm |
|
3.5 mm |
Lightweight & Heavy-Duty Cleat Minimum Pulleys
When a belt involves multiple components (ie. Base belt, V-guide, sidewall, flange, lacing, etc.) it is important to consider the minimum pulley dimensions of all components when determining an appropriate minimum pulley dimension for the entire conveyor system.
When selecting a fabricated belt, the "largest" minimum pulley diameter for each component must be chosen as the smallest pulley diameter to use.
Undersized pulleys can create a number of issues, including:
- Shortened belt life
- Ply separation
- Creation of stress cracks in covers
- Causes cleats to lift from belt covers
| MINIMUM PULLEYS |
|---|
| TYPE |
RUBBER |
PVC |
URETHANE |
| O Lug |
3" |
3" |
3" |
| A Lug |
3" |
3" |
3-1/2" |
| B Lug |
3-1/2" |
3-1/2" |
4-1/2" |
| C Lug |
4" |
4" |
|
| 1/4" Square Lug (1/4" x 1/4") |
3" |
|
|
| 3/8" Square Lug (3/8" x 3/8") |
3" |
|
|
| 1/2" Square Lug (1/2" x 1/2") |
4" |
2-1/2" |
|
| 3/4" Square Lug (3/4" x 3/4") |
8" |
2-1/2" |
|
| 1" Square Lug (1" x 1") |
10" |
|
|
| 1/2" Standard T-Cleat |
3" |
3" |
|
| 3/4" Standard T-Cleat |
|
2-1/2" |
|
| 1" Standard T-Cleat |
4" |
3" |
|
| 1-1/2" Standard T-Cleat |
5" |
3" |
6" |
| 2" Standard T-Cleat |
6" |
3" |
8" |
| 2-1/2" Standard T-Cleat |
8" |
4" |
|
| 3" Standard T-Cleat |
10" |
4" |
|
| 4" Standard T-Cleat |
12" |
5" |
|
| 3/4" Heavy-Duty T-Cleat |
|
3" |
|
| 1" Heavy-Duty T-Cleat |
5" |
|
|
| 1-1/2" Heavy-Duty T-Cleat |
8" |
3" |
|
| 2" Heavy-Duty T-Cleat |
8" |
|
|
| 3" Heavy-Duty T-Cleat |
10" |
|
|
| 4" Heavy-Duty T-Cleat |
18" |
|
|
| 5" Heavy-Duty T-Cleat |
18" |
|
|
| 6" Heavy-Duty T-Cleat |
18" |
|
|
| 1-1/2" Super Heavy-Duty T-Cleat |
|
5" |
|
| 2" Super Heavy-Duty T-Cleat |
|
6" |
|
| 3" Super Heavy-Duty T-Cleat |
|
8" |
|
| 4" Super Heavy-Duty T-Cleat |
|
10" |
|
| 1" C-Cleat (Scoop Cleat) |
4" |
|
|
| 1-1/2" C-Cleat (Scoop Cleat) |
5" |
|
|
| 2" C-Cleat (Scoop Cleat) |
6" |
3" |
|
| 2-1/2" C-Cleat (Scoop cleat) |
8" |
|
|
| 3" C-Cleat (Scoop Cleat) |
8" |
4" |
|
| 30 mm (1-1/4") Thin Line Cleat |
|
|
2" / 50 mm |
| 40 mm (1-1/2") Thin Line Cleat |
|
|
2" / 50 mm |
| 50 mm (2") Thin Line Cleat |
|
|
2" / 50 mm |
| 60 mm Thin Line Cleat |
|
|
2" / 50 mm |
The above chart is intended to be used as a guideline. Contact Apache with questions for specifics to your application.
