Part# 20105052

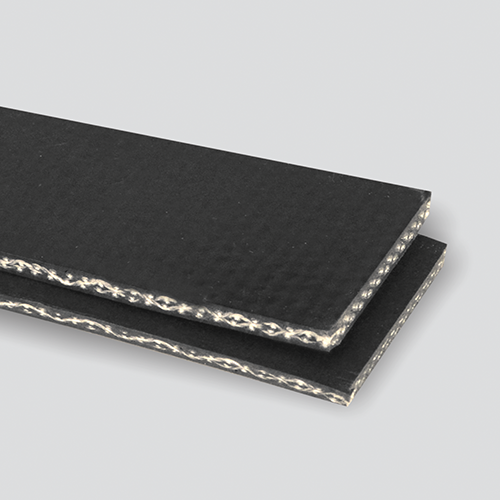

Proven belt for long wearing, high performance, problem-free material handling applications. Ideal for moving bulk materials, chemicals, fertilizers, and grain. Ideal for a variety of roller bed and troughed applications. Characteristics include low stretch, high strength, and good fastener retention.
SPECIFICATIONS
-
UPC: 725559945694
-
Spec#: 5052
-
Ply: 1
-
Working Tension: 150
-
Color: Black
-
Compound: PVC
-
Carcass: Interwoven Polyester
-
Top Surface: Cover
-
Bottom Surface: Cover
-
Thickness / Overall Gauge: 0.181"
-
Weight (PIW): 0.098
-
Elongation @ 100%: 1-2%
-
Minimum Pulley: 5"" (6"" elevator)"
-
Temperature Range: 0°F to 180°F
-
Oil Resistant: No
-
Clipper®: U2
-
Alligator®: 20
-
Staple: RS187
-
Solid Plate: Not Recommended
-
Flexco® Bolt On: Not Recommended
-
Flexco® Rivet: Not Recommended
-
Plastic Spiral: Not Recommended
-
Plastic Rivet: APF150 B Recess
-
Endless Splice: Finger, Skive
