Part# 20104383

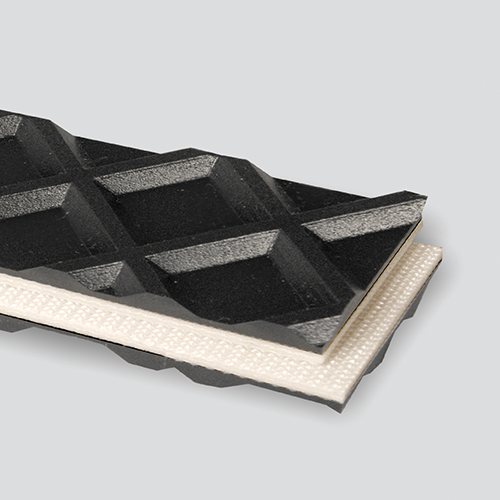

This unique belt was designed with a square diamond, permanently anti-static, oil resistant cover that is ideal for box rail applications as well as sanding and woodwork machines.
SPECIFICATIONS
-
UPC: 725559945526
-
Spec#: 4383
-
Ply: 3
-
Working Tension: 150
-
Color: Black
-
Compound: PVC
-
Carcass: Monofilament
-
Top Surface: Waffle Top
-
Bottom Surface: Bare
-
Thickness / Overall Gauge: 0.335"
-
Weight (PIW): 0.136
-
Elongation @ 100%: 1-2%
-
Minimum Pulley: 3.94"
-
Temperature Range: 5°F to 176°F
-
Oil Resistant: No
-
Clipper®: U2
-
Alligator®: 20
-
Staple: RS187
-
Solid Plate: Not Recommended
-
Flexco® Bolt On: Not Recommended
-
Flexco® Rivet: Not Recommended
-
Plastic Spiral: ASL90
-
Plastic Rivet: APF150 B
-
Endless Splice: Bias Step
