Part# 12026190

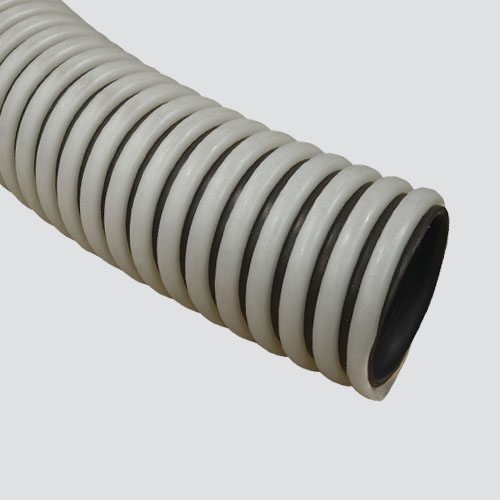

This ducting hose is commonly used on air seeder applicator equipment in the agricultural industry. Its EPDM tube gives it more abrasion resistance than most air seeder hoses, and the rigid external poly helix provides excellent protection from machine vibration.
SPECIFICATIONS
-
UPC: 725559014246
-
Inside Diameter (in): 2
-
Inside Diameter (mm): 50.8
-
Outside Diameter (in): 2.42
-
Outside Diameter (mm): 61.47
-
Maximum PSI: 128
-
Minimum Bend Radius (in): 4
-
Standard Length: 100'
-
Temperature Range: -30°F to 140°F
-
Cover Material: Polyethylene
-
Cover Color: Gray/Black
-
Tube Material: EPDM
-
Tube Color: Black
-
Reinforcement: External Poly Spiral Helix
-
Weight (lbs): 0.45 / Foot
-
Style: Coiled
-
Notes: Manufacturer testing completed at 68°F for minimum bend radius. Increase or decrease in temperature may affect hose performance.
