2-Ply 150# Polyester Tan SBR Siped Diamond Top x Bare

2-Ply 150# Polyester Tan SBR Siped Diamond Top x Bare

Part# 20104313

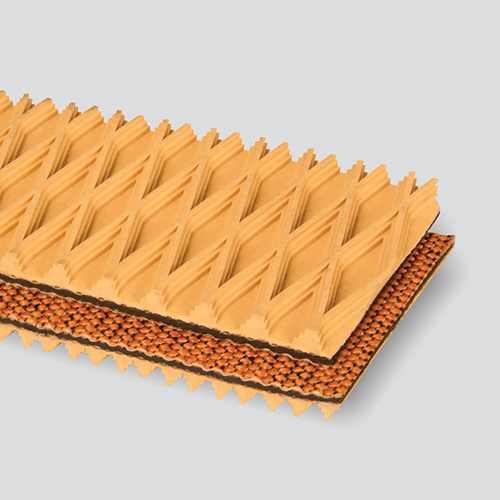

Sometimes referred to as “wedgegrip”, our tan non-marking diamond shaped profiled design has high coefficient of friction for exceptional gripping capabilities. Popular for cases, parcels, and bagged goods. It is also used for aftermarket belts for the US post office.



SPECIFICATIONS

  • EAN / UPC: 725559945281
  • Spec#: 4313
  • Ply: 2
  • Working Tension: 150
  • Color: Tan
  • Compound: SBR
  • Carcass: Polyester
  • Top Surface: Impression
  • Bottom Surface: Bare
  • Thickness / Overall Gauge: 0.31"
  • Weight (PIW): 0.106
  • Elongation @ 100%: 1-2%
  • Minimum Pulley: 2.5"
  • Temperature Range: -40°F to 250°F
  • Oil Resistant: No
  • Clipper®: U2
  • Alligator®: 15
  • Staple: RS125
  • Solid Plate: Not Recommended
  • Flexco® Bolt On: Not Recommended
  • Flexco® Rivet: Not Recommended
  • Plastic Spiral: ASL90
  • Plastic Rivet: APF150 W
  • Endless Splice: Bias Step
