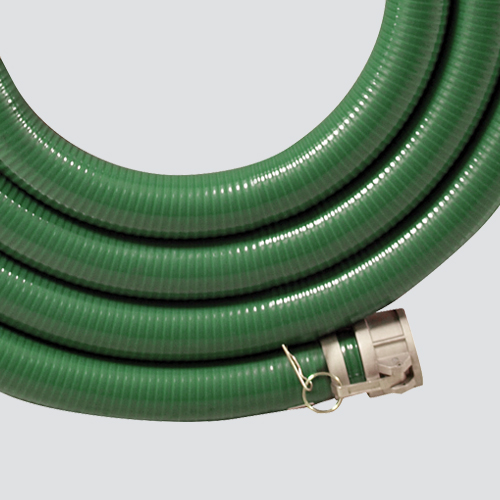

1" x 20' Green PVC Suction Hose Assembly — Aluminum Cam Lock

Part# 98128000

An economical and versatile general service, style G, suction and discharge hose used for pumping water and light chemical solutions in the construction, rental, agricultural, and irrigation industries. The PVC helix increases flexibility and abrasion while the smooth interior provides maximum flow. Complete assembly with male x female aluminum cam and groove couplings with brass locking arms. Attached with smooth ID preformed bands to ensure a tight seal.



SPECIFICATIONS

  • EAN / UPC: 725559089855
  • Inside Diameter (in): 1
  • Inside Diameter (mm): 25.4
  • Outside Diameter (in): 1.25
  • Outside Diameter (mm): 31.75
  • Maximum PSI: 90
  • Minimum Bend Radius (in): 3
  • Fittings: Male x Female Aluminum Cam Locks
  • Temperature Range: -10°F to 130°F
  • Cover Material: PVC
  • Cover Color: Green
  • Tube Material: PVC
  • Tube Color: Green
  • Reinforcement: Poly Helix
  • Negative Pressure / Vacuum Rating (in/HG): 30
  • Weight (lbs): 7.2 / Each
  • Style: Coiled
  • Warnings: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after use. Manufacturer testing for PSI and minimum bend radius completed at 68°F. Increase or decrease in temperature may affect hose performance.
