Part# 20104328

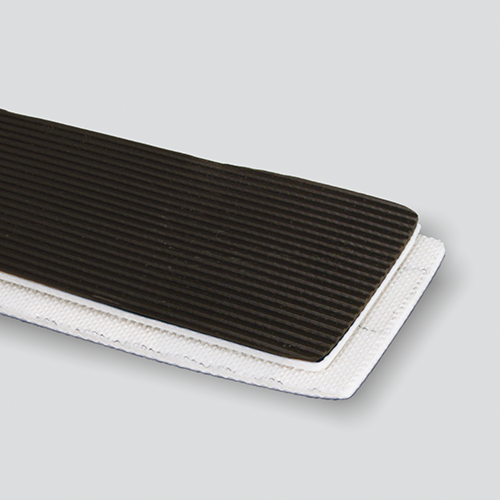

This 2-ply cross-rigid belt features a longitudinally ribbed soft, high grip PVC top cover with a low noise, pulley side fabric. Specifically designed for use in large distribution centers and on incline conveyors, this belt is also static conductive and flame retardant.
SPECIFICATIONS
-
UPC: 725559945397
-
Spec#: 4328
-
Ply: 2
-
Working Tension: 100
-
Color: Black
-
Compound: PVC
-
Carcass: Monofilament
-
Top Surface: Longitudinal Rib
-
Bottom Surface: Bare Whisper Weave
-
Thickness / Overall Gauge: 0.110"
-
Weight (PIW): 0.053
-
Elongation @ 100%: 1-2%
-
Minimum Pulley: 2"
-
Temperature Range: 20°F to 175°F
-
MSHA Approved / Fire Resistant: Yes
-
Oil Resistant: No
-
Clipper®: UX1
-
Alligator®: 1
-
Staple: RS62
-
Solid Plate: Not Recommended
-
Flexco® Bolt On: Not Recommended
-
Flexco® Rivet: Not Recommended
-
Plastic Spiral: ASL60
-
Plastic Rivet: APF150 B
-
Endless Splice: Finger
