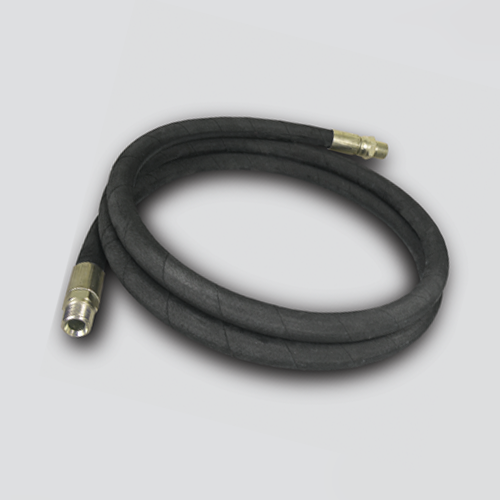

1/2" x 12" Hydraulic Hose Assembly — Male x Male Swivel (Unpackaged)1/2" x 12" Hydraulic Hose Assembly — Male x Male Swivel (Unpackaged)

1/2" x 12" Hydraulic Hose Assembly — Male x Male Swivel (Unpackaged)

Part# 98398580-C

Assemblies meet SAE 100R2AT standards. They are coiled and sleeved for easy storage, and are labeled with size and specification for easy identification.




SPECIFICATIONS

  • UPC: 725559810190
  • Inside Diameter (in): 1/2
  • Inside Diameter (mm): 12.7
  • Outside Diameter (in): 0.88
  • Outside Diameter (mm): 22.3
  • Maximum PSI: 3500
  • Minimum Bend Radius (in): 7.09
  • Fittings: Male Pipe Thread x Male Swivel
  • Temperature Range: -40°F to 212°F
  • Cover Material: SBR/CR/BR
  • Cover Color: Black
  • Tube Material: NBR
  • Tube Color: Black
  • Reinforcement: 2 Steel Braids
  • Weight (lbs): 1.18 / Each
  • Style: Coiled
