Part# 20104326

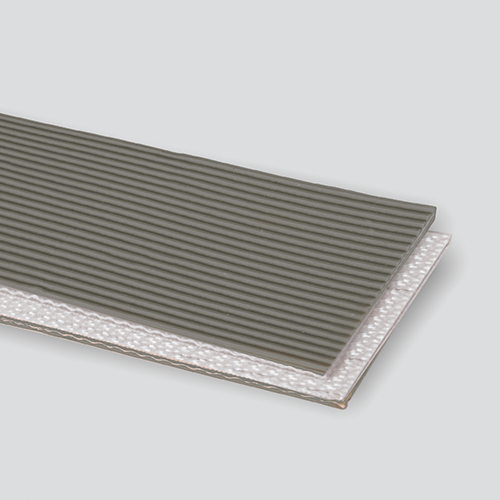

The premium PVC top cover utilizes longitudinal grooves to achieve its aggressive grip. Can be easily finger spliced resulting in top quality endless belts. In dirty and dusty conditions, occasional cleaning restores the gripping action.
SPECIFICATIONS
-
UPC: 725559945373
-
Spec#: 4326
-
Ply: 2
-
Working Tension: 100
-
Color: Gray
-
Compound: PVC
-
Carcass: Monofilament
-
Top Surface: Longitudinal Rib
-
Bottom Surface: Bare
-
Thickness / Overall Gauge: 0.102"
-
Weight (PIW): 0.05
-
Elongation @ 100%: 1-2%
-
Minimum Pulley: 2"
-
Temperature Range: 20°F to 175°F
-
Oil Resistant: No
-
Clipper®: UX1SP
-
Alligator®: 7
-
Staple: RS62
-
Solid Plate: Not Recommended
-
Flexco® Bolt On: Not Recommended
-
Flexco® Rivet: Not Recommended
-
Plastic Spiral: ASL90
-
Plastic Rivet: APF150 W
-
Endless Splice: Finger, Skive
